A solid state relay (SSR) is an electronic switching device that switches on or off when an external voltage (AC or DC) is applied across its control terminals. It serves the same function as an electromechanical relay, but has no moving parts and therefore results in a longer operational lifetime. SSRs consist of a sensor which responds to an appropriate input (control signal), a solid-state electronic switching device which switches power to the load circuitry, and a coupling mechanism to enable the control signal to activate this switch without mechanical parts. The relay may be designed to switch either AC or DC loads, we offer both single phase and three phase relay, DC and AC load relays.
MS-1DA48
DC Input AC Load Solid State Relay- Single phase solid state relay
- DC input AC load
- 3-32VDC input
- 24~480Vac load
- From 10 amps up to 200 amps
- Zero-crossing trigger
MS-1AA48
AC Input AC Load SSR Solid State Relay● Single phase solid state relay
● AC input AC load
● 90~280Vac input
● 24~480Vac load
● From 10 amps up to 200 amps
● Zero-crossing trigger

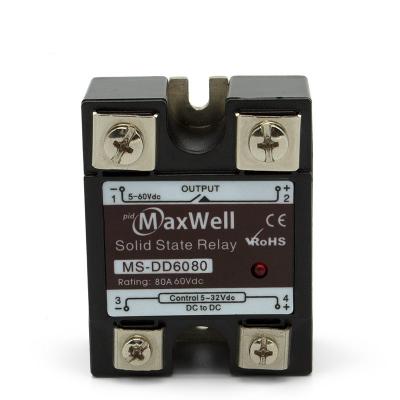

MS-DD
DC Input DC Load Solid State Relay● Single phase solid state relay
● DC input DC load
● 5-32VDC input
● 5~60VDC/5~110VDC/5~220VDC
● From 10 amps up to 120 amps
MS-1DA48XX-R
Low cost Single phase DC to AC SSR for resistive load only● For resistive load only
● Single phase solid state relay
● DC input AC Load
● 24~480Vac load
● 10/25/40 amps, three options
● Zero-crossing trigger
SSR-DA
EQIEK SSR-10DA,SSR-25DA,SSR-40DA● Single phase solid state relay
● 3-32VDC input
● 24~480Vac load
● From 10 amps up to 100 amps
● Zero-crossing trigger
● Fotek style, low cost
JX-1DA KT-1DA
Omron Style DC Input AC Load SSR● Single phase solid state relay
● 3-32VDC input
● 24~480Vac load
● From 10 amps up to 200 amps
● Zero-crossing trigger
● Laser printing, similar to Omron
MS-1DA68
Industrial Type DC Input AC Load SSR● Industrial type solid state relay
● Single phase
● DC 3.2-32V input
● 24~1200Vac load
● From 60 amps all the way up to 1000 amps
● Zero-crossing trigger
MS-1AA68
Industrial Type AC Input AC Load SSR● Industrial type solid state relay
● Single phase AC input AC load
● 90~280Vac input
● 24~1200Vac load
● From 60 amps all the way up to 1000 amps
● Zero-crossing trigger

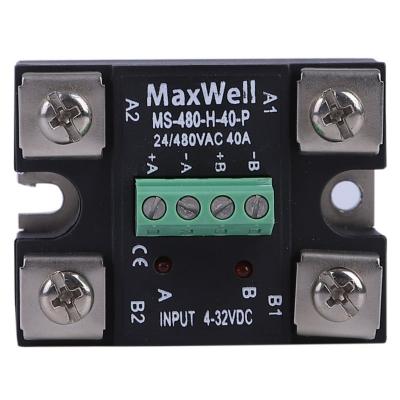

MS-480-H
Two Channel DC Input AC Load SSR● Dual channel solid state relay
● Single phase
● DC 4-32V input
● 24~480Vac load
● 20/25/40/50/60 options on the amps
● Zero-crossing trigger/Random trigger
MS-3DA48
DC Input AC Load 3 Phase Solid State Relays● Three phase solid state relay
● 3-32Vdc input
● 24~480Vac load
● From 10 amps up to 200 amps
● Zero-crossing trigger
MS-3AA48
AC Input AC Load 3 Phase SSR(MS-3AA48)● Three phase solid state relay
● 90~280Vac Input
● 24~480Vac load
● From 10 amps up to 200 amps
● Zero-crossing trigger
MS-3DA48XX-R
Three phase DC input AC load SSR for resistive load● Three phase solid state relay
● 5-32Vdc input
● 24~480Vac load
● only available with 10/25/40 amps
● Zero-crossing trigger
● For resistive load only
