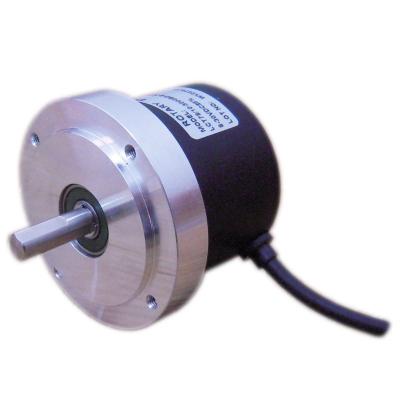

70mm housing rotary encoder abz incremental encoder
-70mm housing diameter, aluminum housing
-different mounting arrangement to suit different field application
-solid shaft type with shaft size at 8mm(standard), other shaft size customizable
-various pulse options to maximum 5400 ppr
-3 phase A B Z or 6 phase A B Z A’ B’ Z’
-Push-pull, NPN/PNP open collector, Line driver, Push-pull with inverted signal output
-DC source, 5-30VDC, wide range , or 5VDC for line driver
-2 meters standard wire length, or extended wire length as per your request
-Cable rear entry or side entry optional,
-Current consumption: 100mA(Load disconnected)
-Load current: 50mA maximum per channel, 20mA maximum per channel(line driver output)
-Frequency: 100KHZ
-Maximum permissible speed: 4000 rpm
-Shaft loading radial: 10N
-Shaft loading thrust: 20N
-Weight: 0.16KG
-Protection level: IP50
-Operation temperature range:-10℃-70℃
-Storage temperature range: :-30℃-85℃
-Vibration resistance: 50m/s, 10-65HZ, 1mm double amplitude for 2 hours each in X, Y and Z
Output circuits, wave forms, Connection diagram
The output circuits and wave forms are displayed below, the output is a quadrature output.
Dimensions and mounting arrangement
Please check carefully before order with us as different application would require different mounting arrangement.
