SCR power regulator and temperature controller

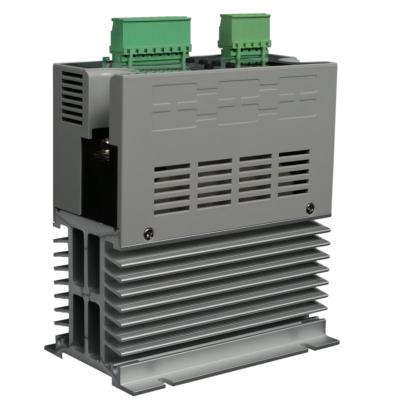

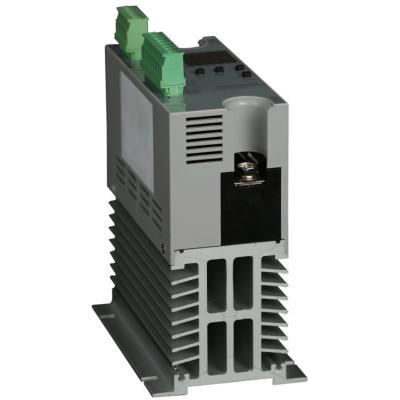

SCR Power controller with temperature controller

This is a single phase SCR power regulators and temperature controllers 2 in 1 units, in a typical heating system, you would need a temperature controller and a SCR power regulators, and they are two separate devices, we go further and build this two devices in one package, this saves a lot of efforts for panel builders when it comes down to wiring, and RS-485 modbus is a standard feature, controller can be integrated to systems with HMI or PLC etc. the load can be directed wired to this thyristor power regulators, and it works with all kinds of inputs, Thermocuple, RTD, analog signal

Item no.:
KDF100
Payment:
T.T, Credit Card, Paypal etc, to be negotiat
Color:
Grey housing, black front facia
Goods stock:
1000
Min order:
1 PCS
Product weight:
170 g-350 g
Lead Time:
3-15 days depends on the order

Inquiry now

SCR Power Controller With Temperature Controller

-Key features

● Temperature controller and SCR 2 in 1 units
● Support all kinds of input, TC/RTD/Analog
● 48A/60A/80A optional
● 24VDC power supply
● For resistive load
● Turn-key solution for resistive load
● Save a lot of efforts on wiring
● RS-485 as standard features
● PID or ON/OFF control mode
● Heating or cooling mode switchable
● 0.2%F.S accuracy
● Auto manual control bumpless transfer
● Soft-start for analog output
● Run/Stop function
● Output high/low limits configurable
● With dual line 4 digits LED display in front of panel.
● Four rubber keys for setting purpose, programming is possible
even without the master device

-Universal inputs
Supports thermocouple, RTD, and analog signals(0-5Vdc, 0-10Vdc, 1-5Vdc, 2-10Vdc, 0-20mA, 4-20mA)
Thermocouple(K,E,J,N,W,S,T,R,B)
RTD(PT100)

-RS-485 Modbus communication
RS-485 modbus is a standard feature, controller can be integrated to a system with HMI or PLCs etc

Click on below link to download documents

Catalog-KDF100
User manual-KDF100

Below is a video demo on KDF100 connected with HMI.
