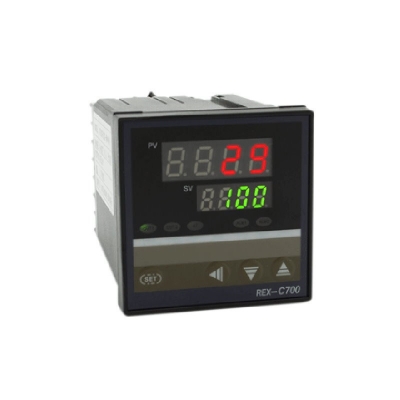

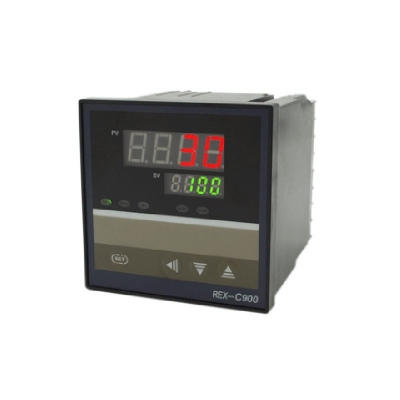

Rex C100 C400 temperature controller

REX C100, C400, C700, C900 is a very popular controller on the markets, comes with relay or SSR Drive output, with 1 alarm and works on wide range of power supply, works with thermocuple and RTD inputs despite the cost being very competetive.

Item no.:
REX Series
Min order:
1 PCS
Product weight:
170 g-350 g

Inquiry now

Specifications

Rex C100 C400 temperature controller

-Key features

● Relay output or SSR Drive output, specify when order
● Universal input(support thermocouple and RTD inputs)
● PID,ON/OFF control mode
● 1 alarm
● Setting value high/low limit
● Access protection
● Cost effective
● Heating+Cooling control configurable
● Power supply.: 100-240Vac

-Ordering information

Item No: REX-C100-FK02-M*AN Relay output, 1 alarm, 48mm*48mm
Item No: REX-C400-FK02-M*AN Relay output, 1 alarm, 48mm*96mm
Item No: REX-C500-FK02-M*AN Relay output, 1 alarm, 96mm*48mm
Item No: REX-C700-FK02-M*AN Relay output, 1 alarm, 72mm*72mm
Item No: REX-C900-FK02-M*AN Relay output, 1 alarm, 96mm*96mm
Item No: REX-C100-FK02-V*AN SSR Drive output, 1 alarm, 48mm*48mm
Item No: REX-C400-FK02-V*AN SSR Drive output, 1 alarm, 48mm*96mm
Item No: REX-C500-FK02-V*AN SSR Drive output, 1 alarm, 96mm*48mm
Item No: REX-C700-FK02-V*AN SSR Drive output, 1 alarm, 72mm*72mm
Item No: REX-C900-FK02-V*AN SSR Drive output, 1 alarm, 96mm*96mm

-Click here for the instruction manual on this model
REX C100,C400,C700,C900 manual
