Maxwell DR8F-T-U06 is a din rail mount 8 input 8 transistor outputs I/O modules, input can be NPN or PNP input, 8 NPN transistor output can be controlled from master device like HMI or PLC, the input work independently apart from output.

Maxwell CP48T,CP72T,CP96T,CP49T is a 2 in1 temperature controller with timer, time and temperature are two variables that often involved in a heating relateble applications, a typical application such as heat press printing, food and beverage process, the timer and controller are actually two devices and built-in one

•8 channel AC current true RMS ammeter
•Din Rail mount, Can be used in temperature control system with to detect the True RMS current value
•24VDC source
•Maximum 400A measurement range

MTC-P ramp and soak PID profile multile steps controller is a advanced temperature controller, the process value changed based on predetermined ramping rate and soak rate. process value changes based on a curve over time, the output can be Relay to drive an AC contrator, or SSR Drive to drive an external solid state relay, or 4-20mA analog outputs, maximum 4 patterns with each pattern at maximum 8 segments, 4 pattern can be linked together as 1 program with 32 segements. this controller is suitable for application like muffle furnace, high temperature furnace, klin control etc.

MF43H is a touch screen ramp and soak controller, the conventional ramp and soak controllers or some call it profile controllers on the markets are configured via set buttons on the front panel. end user have to go through layers upon layers of parmaeters and navigate through different parameter during the configuration process. the process could be painful and stressed and often times lead to less efficient and frustration. the configuration with our touch screen ramp and soak controller is much more easier, it's easier for end user to pick up the process as they operate the controller like a cell phone. below are some of the basic features with this touch screen ramp and soak profile controller

TT-500 is 0-10VDC hockey puck head mounted Temperature transmitter, it accepts all kinds of thermocouple and RTD inputs and coverted them into an analog signal 0-10Vdc, this head mount temperature transmitter is a two wire loop powered transmitter, which can be mounted to temperature sensor junction box. the input is configurable via PC and android cell phone. Configurable via cell phone is a great features to have as everybody carries a smart phone nowdays, which means the configuration can be conducted almost anytime anywhere

TT-210 and TT-500 is 0-10V 4-20mA hockey puck head mounted Temperature transmitter, it accepts all kinds of thermocouple and RTD inputs and coverted them into an analog signal such as 4-20mA and 0-10Vdc, this head mount temperature transmitter is a two wire loop powered transmitter, which can be mounted to temperature sensor junction box. the input is configurable via PC and android cell phone. Configurable via cell phone is a great features to have as everybody carries a smart phone nowdays, which means the configuration can be conducted almost anytime anywhere

TT-216 is an input and output galvanically isolated head mounted temperature transmitter, similar to other models we have, this model works with all thermocouple and RTD inputs, but to make sure your site are on the safe side, the isolation is incorporated in this transmitter, the input and range are also programmable via our computer and cell phone software.the input is configurable via PC and android cell phone.

HART® is a worldwide known protocol which has been proven to be reliable and robust, TT-217 equipped with HART 7, put the electrical isolation between input and output and source, the configuration can be done via our free windows software, a HART to USB modem will be needed if you want to configure the temperature transmitter via PC, another option is to configure the unit by using various Hart field communicator.

● Maxwell temperature transmitter,TT-200
● Universal input
● 4-20mA output
● Cost effective, non-isolated
● Round type head mount
● Input and range configurable

TT-513 is a cost-effective din rail mounted temperature transmitter, it is 1 input and 1 output version, available with 4-20mA and 0-10Vdc output, works with TC/RTD input, such as type K, PT100, you can programmable the input and range via PC software and cell phone APP( cell phone app available on Android device)

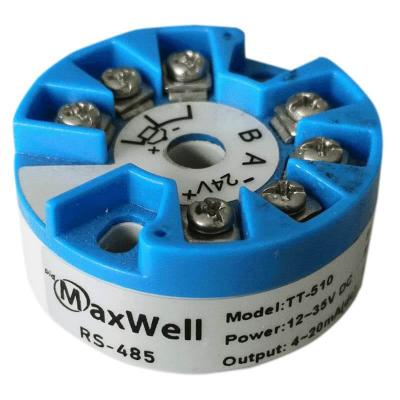

- head mount Modbus RS-485 temperature transmitter
- TC/RTD inputs
- 12-35V DC source
- Modbus RTD RS-485 communication
- Electrical isolation between input/output and source
- PA66 housing

TT-600 is an input and output isolated din rail mounted temperature transmitter, it is 1 input and 1 output version, programmable via PC, software in English, the programming can be done via a standard USB to type C cable.

TT-311 is an input and output isolated din rail mounted temperature transmitter, it is 1 input and 1 output version, programmable via PC, software in English

● Din rail mount temperature transmitter
● Maxwell TT-312
● DIN rail mount type
● Universal input
● 2 wires 4-20mA or 0-10Vdc output
● One input two outputs
● Range and input type programmable via PC software

- Single phase solid state relay
- DC input AC load
- 3-32VDC input
- 24~480Vac load
- From 10 amps up to 200 amps
- Zero-crossing trigger
