High-Precision Process Meter with IP65 Front Panel, 24VDC Sensor Power, and Flexible AOP Alarm Mapping for PLC & Recorder Integration

PIDMaxWell MD610 High Precision Process Indicator 4-Digit Dual LED Display Universal Input TC RTD 4-20mA 0-10V IP65 Panel Meter with Alarm Relay & Retransmission

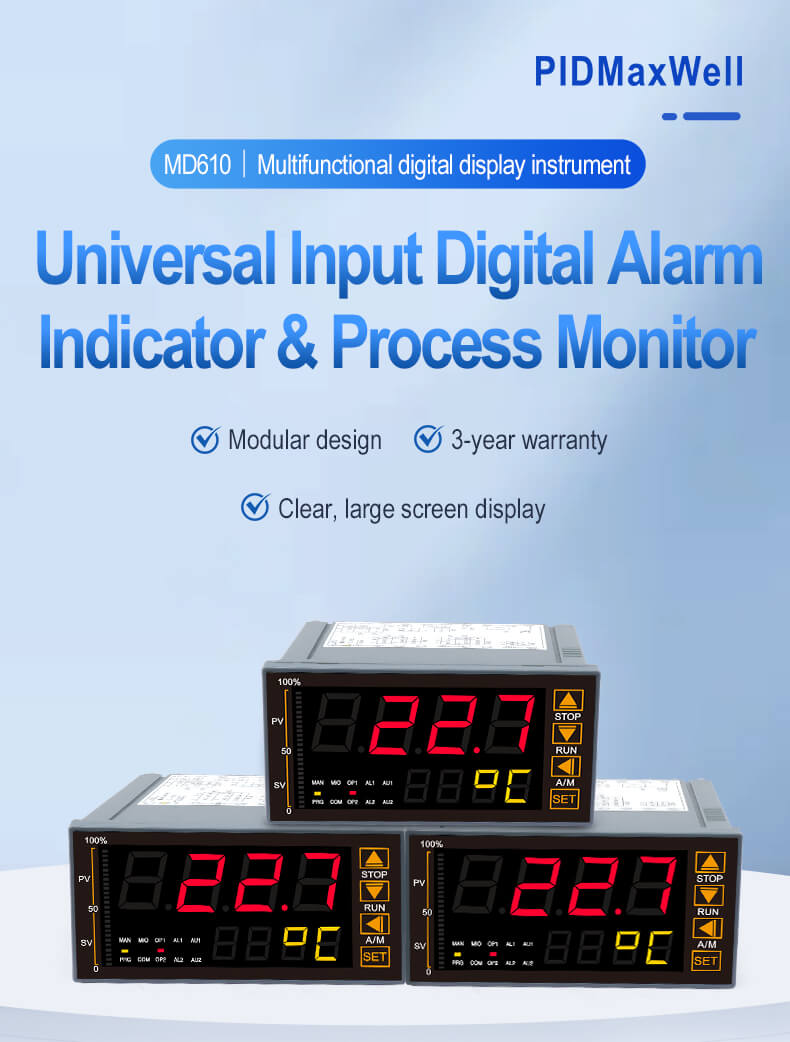

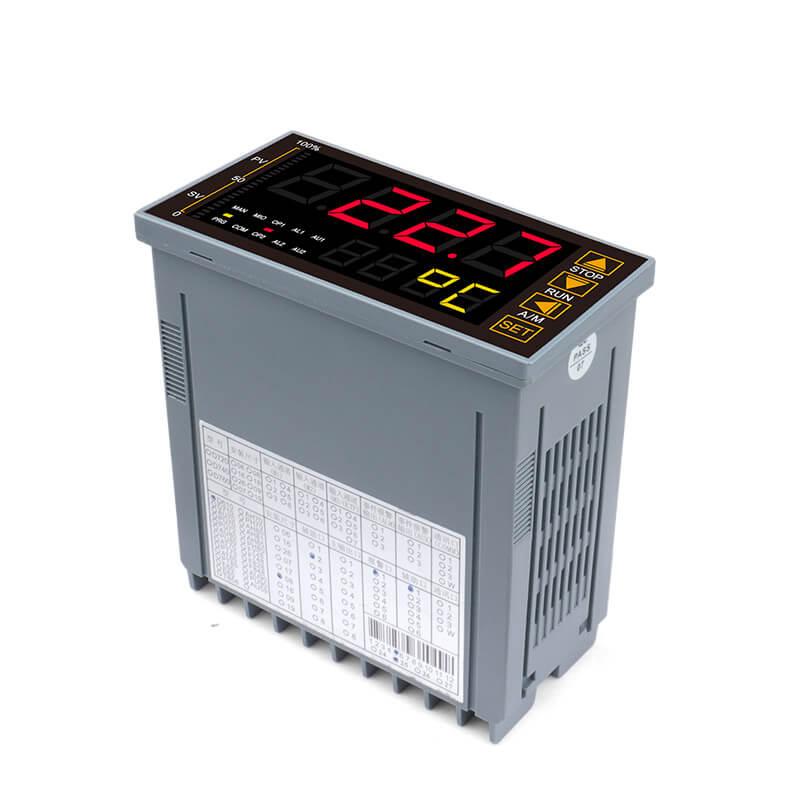

MD610 High-Precision Process Indicator

The MD610 is a compact, high-accuracy process indicator featuring a dual 4-digit LED display (PV + SV) and true universal input for TC, RTD, and analog signals (0-10V / 4-20mA). It delivers 0.3% measurement accuracy with a fast 250ms sampling rate, and operates reliably from -30°C to 75°C with an IP65 front panel.

Key functions include 4 configurable alarms with flexible AOP relay mapping, digital input filtering, and optional PV/SV retransmission (0-20mA / 4-20mA) or Modbus RS-485 communication. Available in 5 panel sizes, it is an ideal choice for industrial temperature and process monitoring.

Brand:
PIDMaxWell
Item no.:
MD610
Payment:
T.T, Credit Card, Paypal etc, to be negotiate
Market price:
$70
Price:
$60
Product origin:
Made in China
Color:
Gray, black
Goods stock:
500
Min order:
1
Lead Time:
14 days after payment confirmed

Inquiry now

Key Features

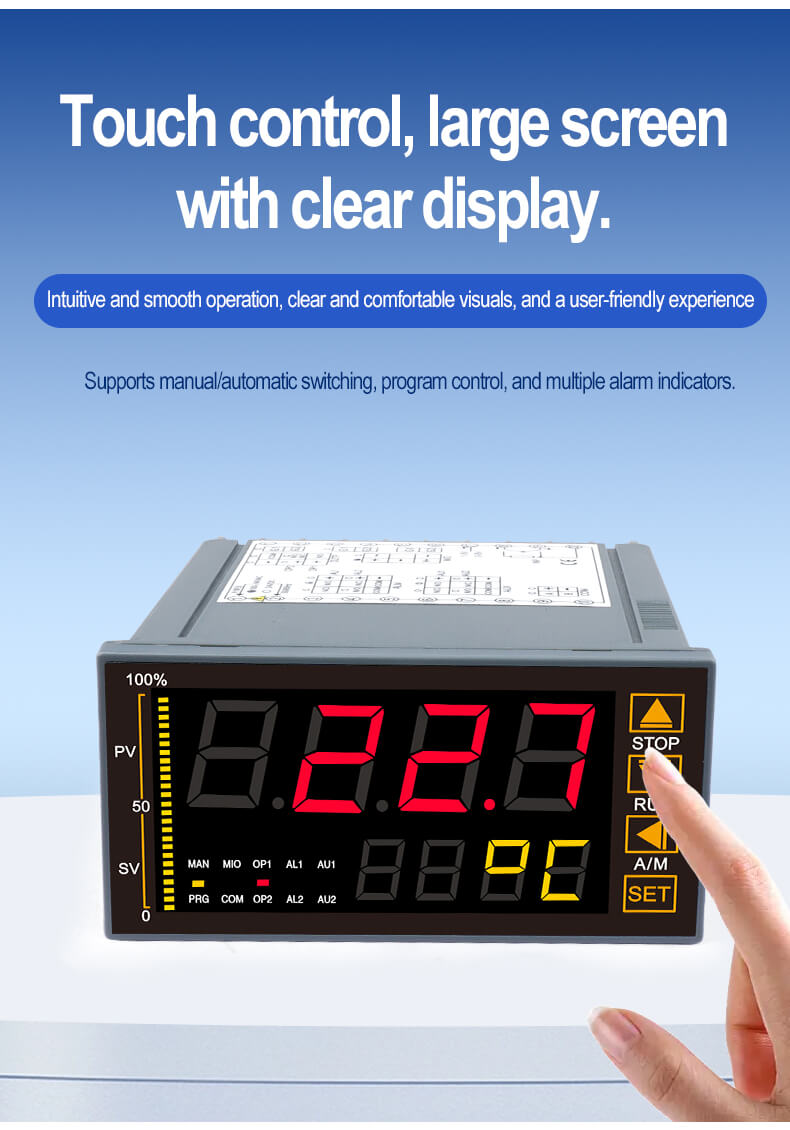

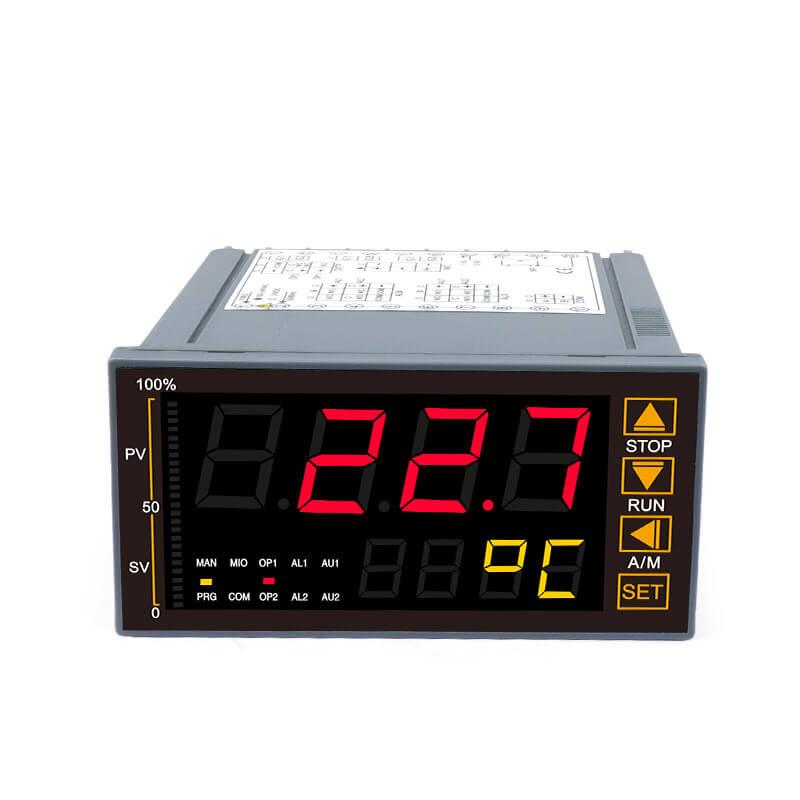

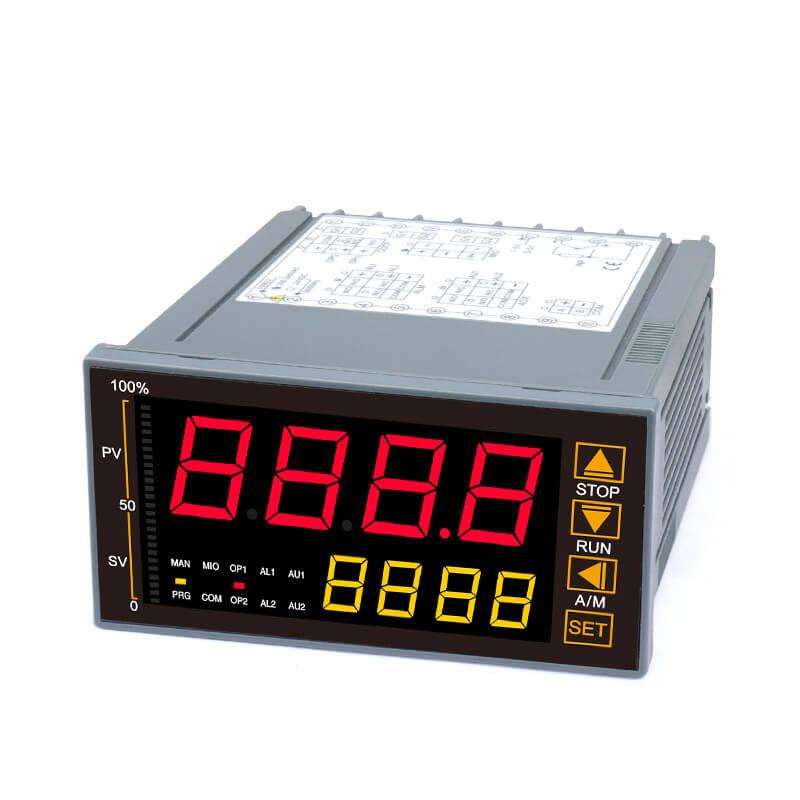

High Accuracy & Dual LED Display
0.3% FS accuracy with dual 4-digit 7-segment LED display (PV red + SV yellow) for simultaneous process value and set value monitoring.

True Universal Input
Supports TC (K, S, R, T, E, J, B, N, WRe3-25, WRe5-26), RTD (PT100, Cu50), and analog signals (0-5V, 1-5V, 0-10V, 4-20mA, 0-20mA).

Built-in 24VDC Auxiliary Power
The Code 2 input version provides 24VDC auxiliary power to directly drive two-wire transmitters (pressure, temperature, etc.).

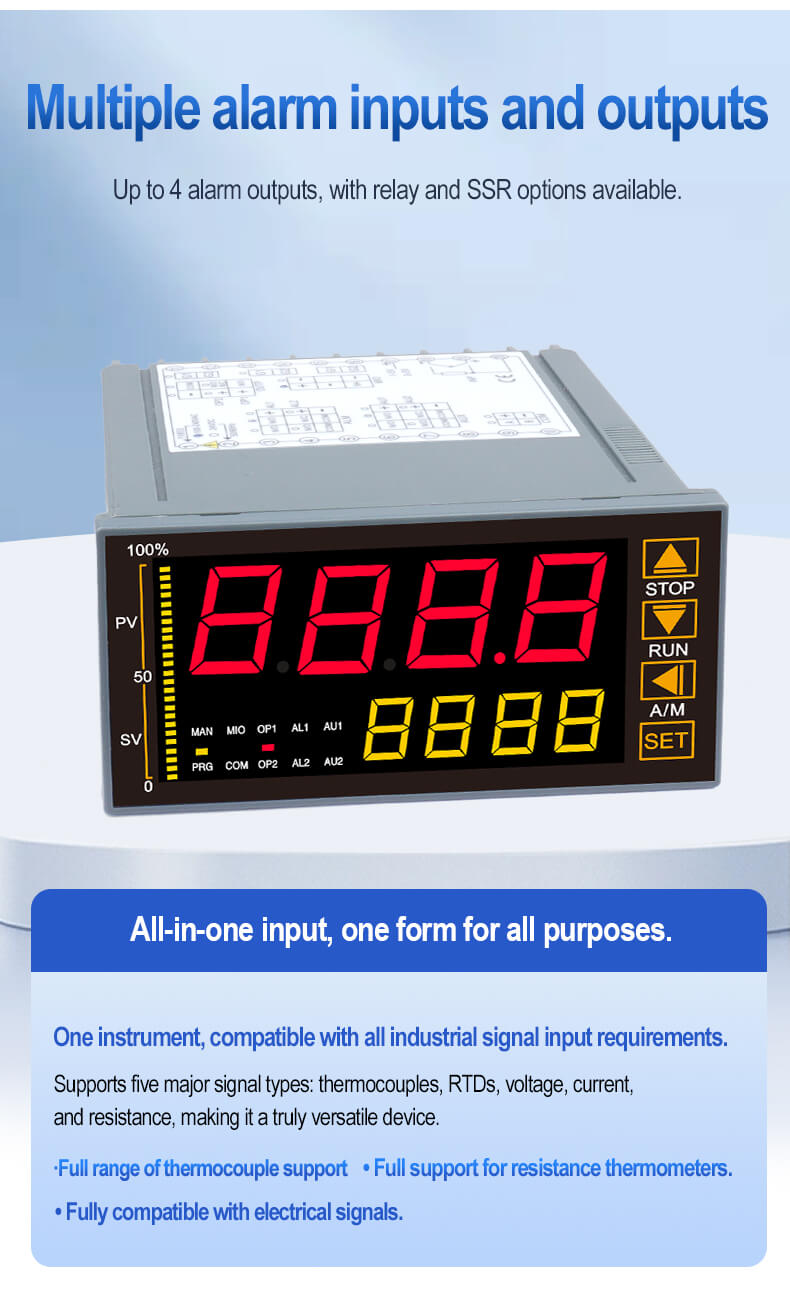

Flexible Alarm Mapping (AOP)
Up to 4 configurable alarms (UPAL, LoAL, ESAL, EIAL) that can be arbitrarily assigned to any relay (AL1, AL2, AU1, AU2) via the AOP parameter.

Optional Retransmission & Communication
PV or SV can be retransmitted as 0-20mA / 4-20mA for PLC or recorder integration. Optional Modbus RS-485 communication (4800/9600/19200 baud).

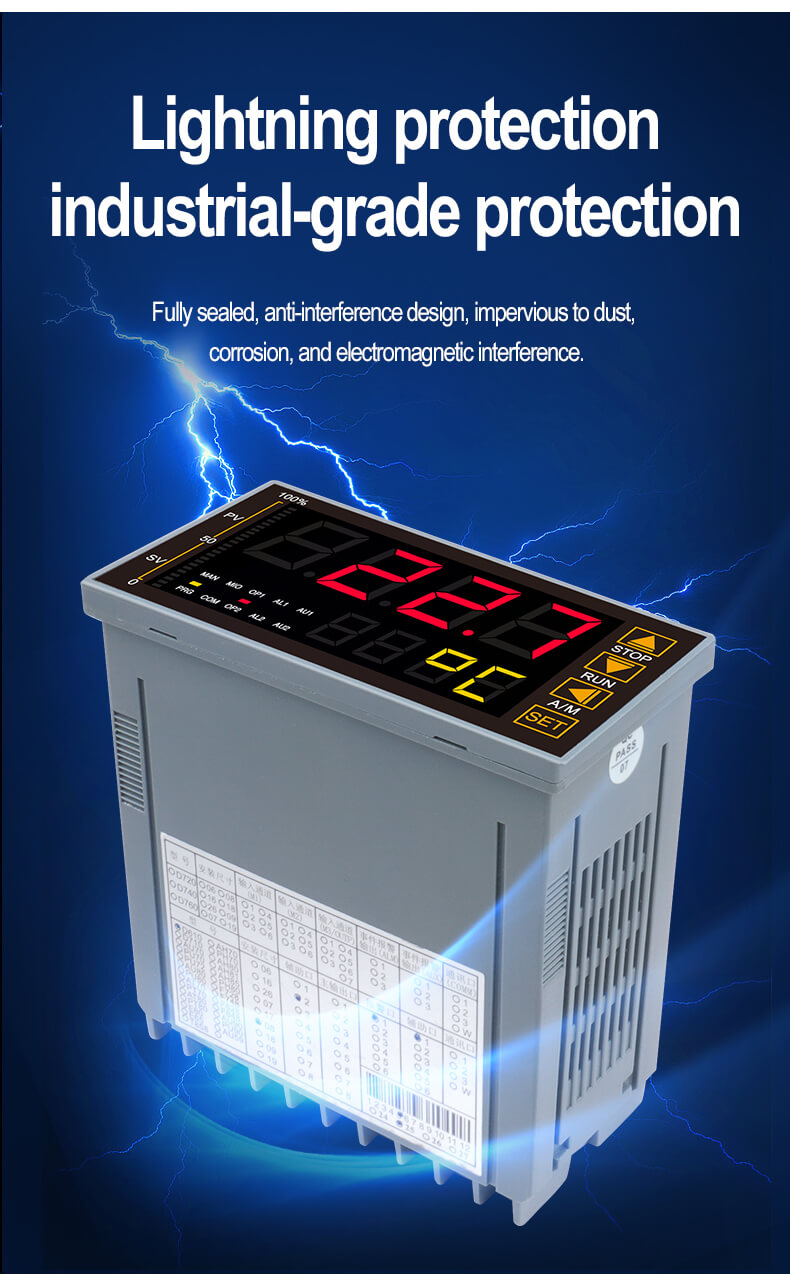

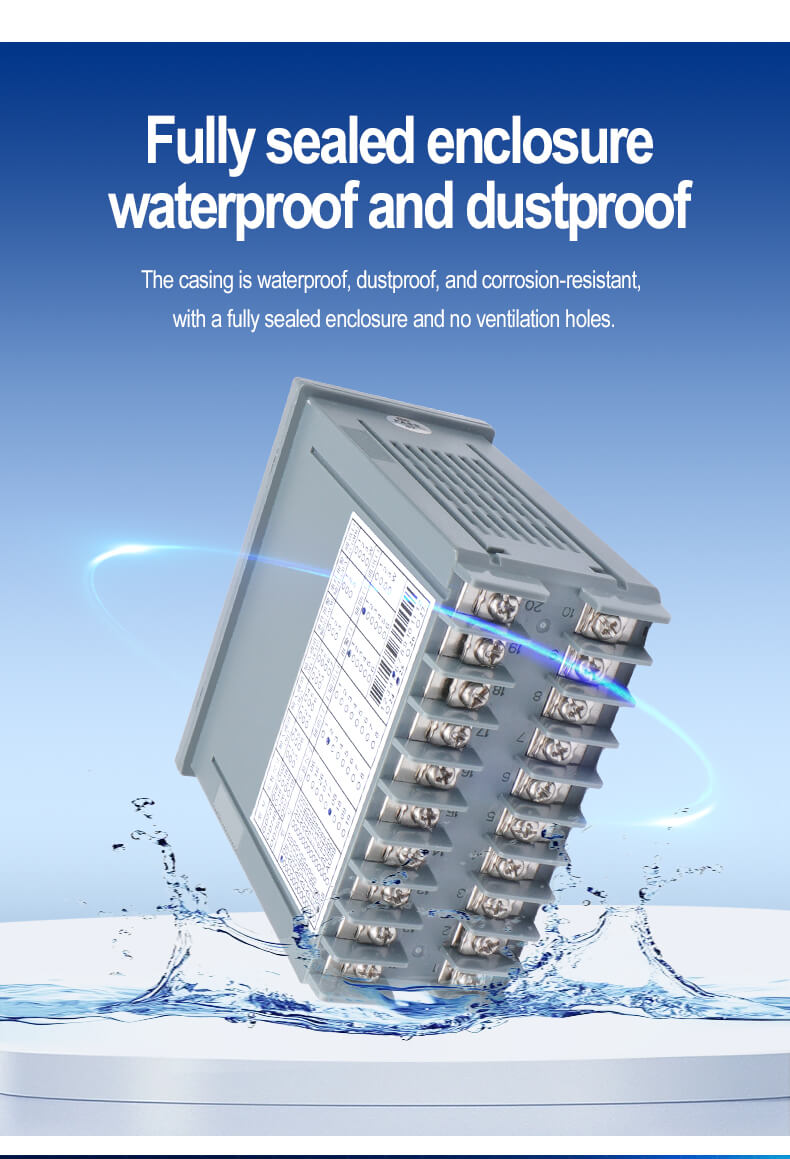

Rugged & Wide-Temperature Design
IP65 front panel protection, fully sealed housing, and an extremely wide operating range from -30°C to 75°C.

Fast Sampling & Digital Filtering
250ms sampling rate with configurable digital filter (0-40) to smooth noisy signals and ensure stable readings.

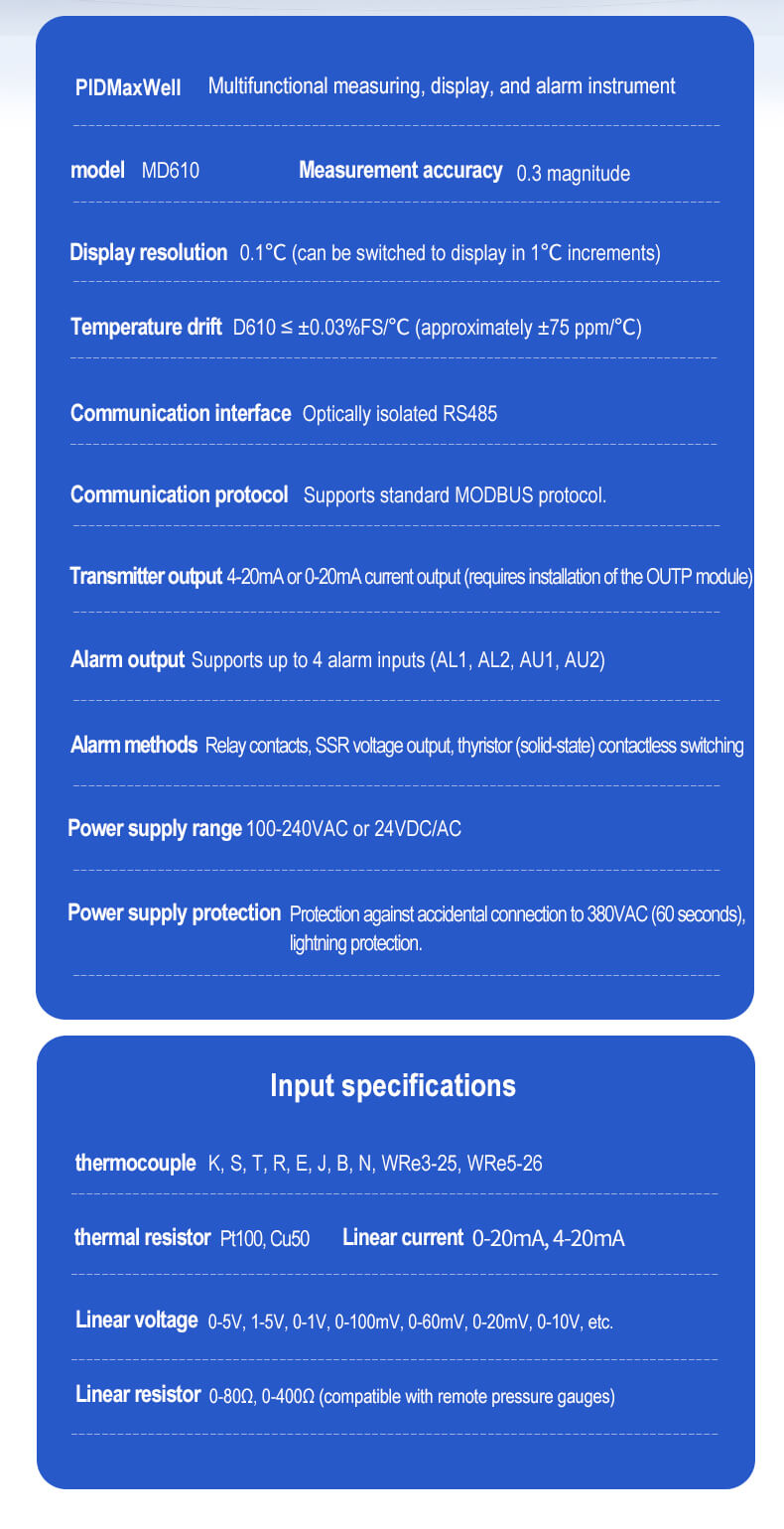

Attribute	Specification
Model	MD610
Display	Dual 4-digit 7-segment LED (PV red + SV yellow)
Accuracy	0.3% FS
Sampling Rate	250 ms
Resolution	0.01 (TC/RTD), 0.001 (Analog)
Input Type	Universal: TC / RTD / Analog (0-5V, 1-5V, 0-10V, 4-20mA)
Thermocouple (TC)	K, S, R, T, E, J, B, N, WRe3-25, WRe5-26
RTD	PT100, Cu50
Analog Input	0-5V, 1-5V, 0-10V, 4-20mA, 0-20mA
Alarm Output	Up to 4 alarms (Relay NO+NC / SSR Drive)
Retransmission Output	Optional 0-20mA / 4-20mA (PV or SV)
Communication	Optional Modbus RS-485 (4800 / 9600 / 19200 baud)
Auxiliary Power Supply	24VDC built-in (Code 2 input version)
Power Supply	100-240VAC 50/60Hz or 24VDC/AC
Power Consumption	< 5W
Operating Temperature	-30°C to 75°C
Temperature Drift	< ±0.03% FS/0°C (±75 ppm/°C)
Protection Rating	IP65 (Front Panel)

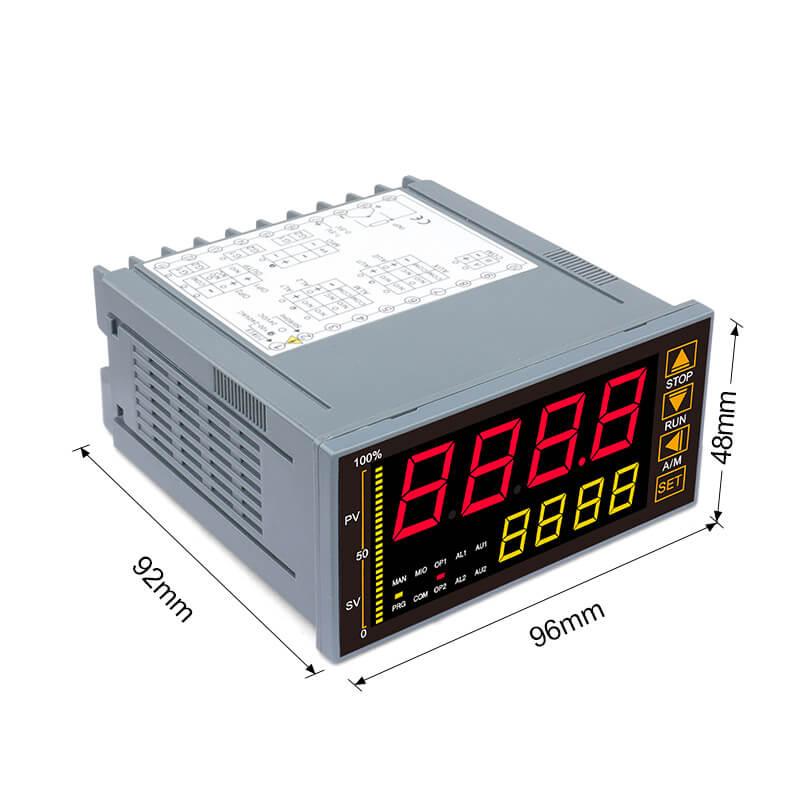

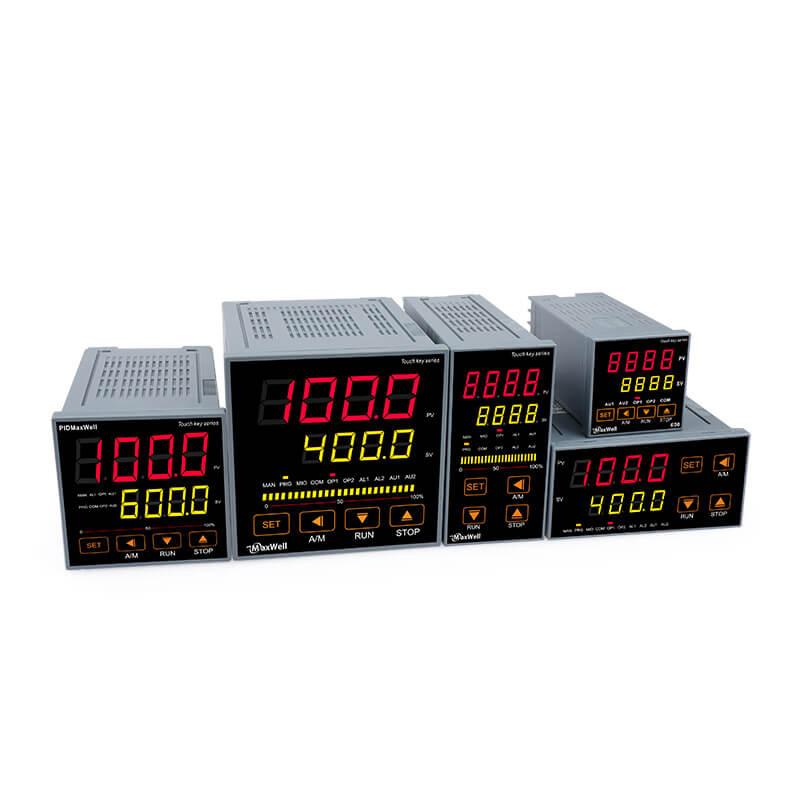

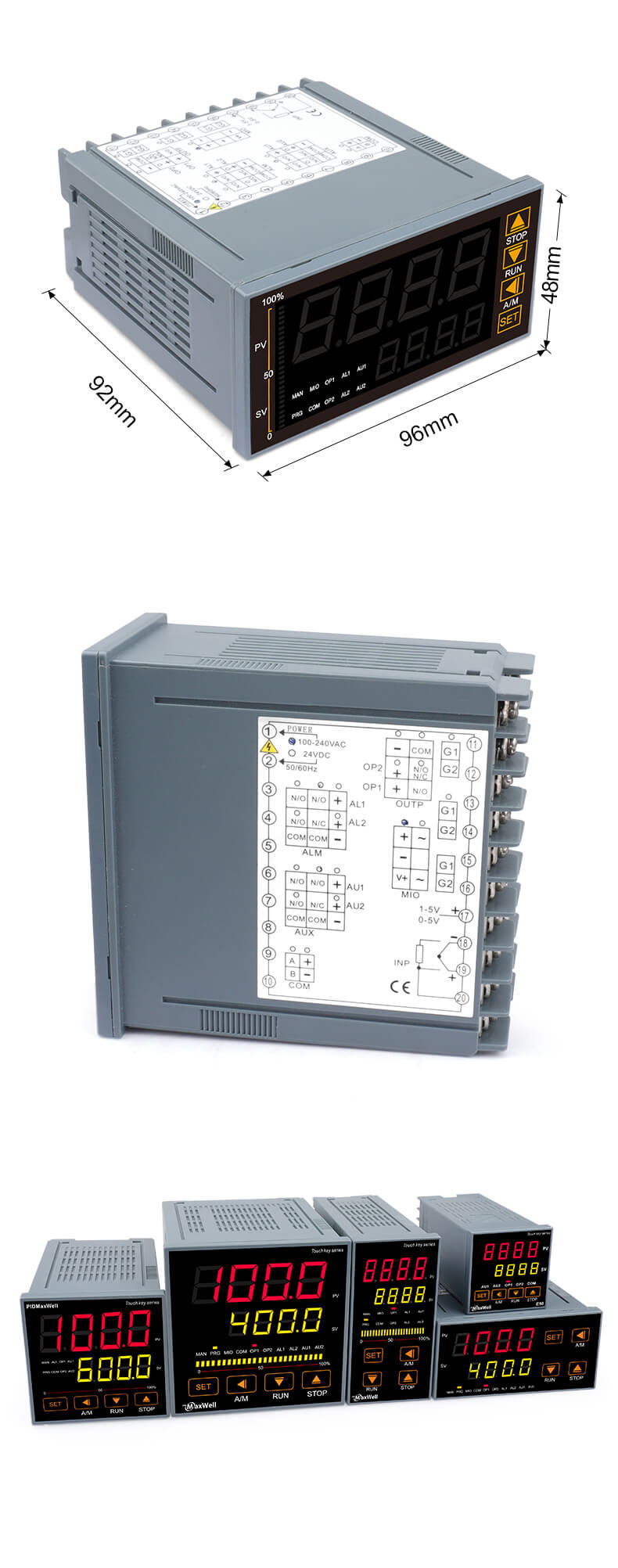

Panel Sizes (mm)	48×48, 48×96, 72×72, 96×48, 96×96
Panel Cutout Sizes (mm)	45×45, 44×92, 68×68, 92×44, 92×92

Click the link below to download the MD610 catalog.

MD610 -Catalog

MD610 Application Scenarios

Industrial Temperature Monitoring
Plastics, packaging, and injection molding machines — real-time temperature display for heating zones, ovens, and extruders with TC/RTD input.

Process Signal Monitoring
Chemical and petrochemical plants — monitoring pressure, flow, level, and other process variables via 4-20mA or 0-10V analog signals.

HVAC & Building Automation
Air handling units, boilers, and chillers — temperature and humidity monitoring with optional RS-485 Modbus integration into BMS systems.

Food & Beverage Processing
Ovens, pasteurizers, and cold storage — reliable temperature indication with IP65 front panel protection against washdown and moisture.

Water Treatment & Environmental
Pump stations, tanks, and pipelines — level and flow indication with retransmission output to PLC or SCADA systems.

Power & Energy Systems
Generator sets, transformers, and battery rooms — temperature monitoring with alarm relay output for over-temperature protection.

Metallurgy & Heat Treatment
Furnaces, kilns, and heat-treating equipment — high-temperature measurement with WRe thermocouples (Code 1 input) and alarm output.

Laboratory & Testing Equipment
Environmental chambers, test benches, and calibration equipment — high-resolution (0.001) analog input for precise measurement and recording.
