CH102 CH402 CH702 CH902 Low Cost Temperature Controller

CH102, CH402, CH702, CH902 is a very popular controller on the markets, comes with relay and SSR Drive output, relay and SSR Drive output at the same time, faciliated wiht different terminals, if you want to use the relay output, then connect your AC contractor or SSR with the relay output terminal, if you want to use SSR drive output, then connect your solid state relay with SSR Drive output terminal, with 1 alarm and works on wide range of power supply, works with thermocuple and RTD inputs despite the cost being very competetive.

  • Item no.:

    CH102,CH402,CH702,CH902
  • Min order:

    1 PCS
  • Product weight:

    170 g-350 g

CH102,CH402,CH702,CH902 low cost temperature controller

-Key features

● Relay output and SSR Drive output, two outputs field selectable
● Universal input(support thermocouple and RTD inputs)
● PID control mode or ON/OFF control mode
● 1 alarm
● Setting value high/low limit
● Access protection
● Cost effective
● Heating+Cooling control configurable
● Power supply.: 100-240Vac

-Ordering information

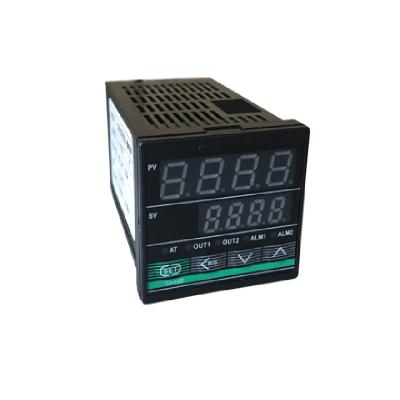

Item No: CH102-FK02-M*AN Relay output+SSR Drive, 1 alarm, 48mm*48mm

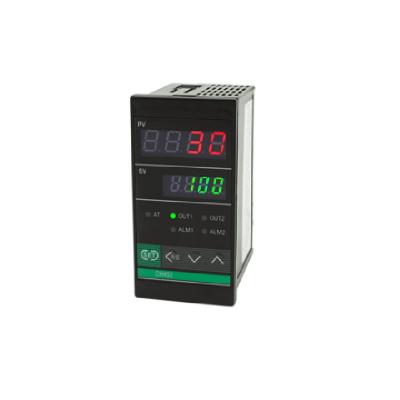

Item No: CH402-FK02-M*AN Relay output+SSR Drive, 1 alarm, 48mm*96mm(Vertical configuration)
Item No: CH502-FK02-M*AN Relay output+SSR Drive, 1 alarm, 96mm*48mm(Horizontal configuration)
Item No: CH702-FK02-M*AN Relay output+SSR Drive, 1 alarm, 72mm*72mm
Item No: CH902-FK02-M*AN Relay output+SSR Drive, 1 alarm, 96mm*96mm


-Click here for the instruction manual on this model
CH102,CH402,CH702,CH902 user manual
